Find your four-wheeler model below in the chart use Jump Menu for easy navigation. Looking for the Bolt Pattern of Your ATV.
Wheel Bolt or Lug Pattern or bolt circle lug circle lug pattern etc is the measured diameter of an imaginary circle formed by the centers of the wheel lugs or bolt holes.
Atv wheel bolt patterns. When measuring your ATVs bolt pattern you will want to check both the front and rear. Some ATV models use a different bolt pattern on front and back so youll want to double check yours before purchasing new wheels. Once youve found which bolt pattern your ATV needs start shopping here.
Looking for the Bolt Pattern of Your ATV. I know a lot of you like to put custom rims on your ATV. Some of you might just want to see if your friends ATV wheels will bolt up to yours.
Either way you can find a listing of the most common ATV wheel bolt patterns on the following pages. You can determine your bolt pattern by measuring in millimeters the distance from the center of one wheel stud to the center of the opposite wheel stud. Next determine your correct bolt pattern.
Convert your measurement from inches to millimeters by multiplying by 254 Example. 4-516 4313 Formula. 4313 x 254 1096 mm 110mm bolt pattern ARCTIC CAT ATV TIRE WHEEL AND BOLT PATTERN.
Measuring your ATVs Bolt Pattern. When measuring your ATVs bolt pattern you will want to check both the front and rear. Some ATV models use a different bolt pattern on front and back so youll want to double check yours before purchasing new wheels.
Arctic Cat Wheel Size Bolt Pattern Guide. Tire Sizes and Bolt Patterns for Your Particular ATV The bolt pattern of your tire is not universal but it can be narrowed down to three of the most common patterns which are the 3 Lug the 4 Lug and 5 Lug each one designed to look just like it sounds. Use this tool to sort wheels by bolt pattern to find what fits your ride.
Below is a generic guide to determining your bolt pattern. If you have any questions about what bolt pattern you need for your ATV or SxS give us a call at 1-800-699-0947 and we will be glad to give you a hand. HONDA ATV BOLT PATTERNS.
Wheel Bolt Pattern is the measured diameter of an imaginary circle formed by the centers of the wheel studs or bolt holes. Common bolt patterns have 4 5 6 or 8 lug holes while less common have 3 7 or 10 lug bolt patterns. Interchangeable Wheel Bolt Pattern Chart for Cars Trucks Vans SUVs Motorhomes RVs ATVs UTVs and Trailers.

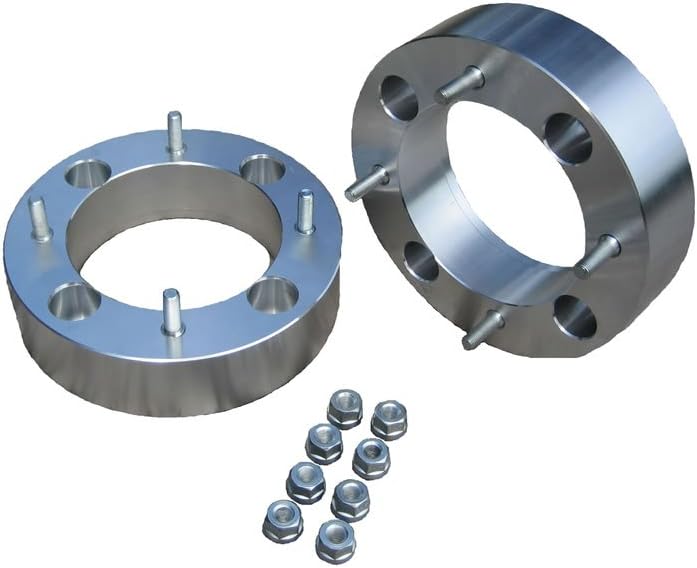

These Chinese Rims Tires and Wheels have been photographed from 34 degree angles to allow you to see bead and bolt patterns while you try to match your current rims or look for a new style. If you need a more precise look click on the picture of the Rim or Wheel on this catalog page. Wheel Adapters are used to change bolt patterns in order to properly fit wheels from one vehicle to the hub of a different vehicle.
Eg 65 to 655 or 1415 Studs to 12 Studs. Wheel Adapters can also be used to adapt or fit aftermarket wheels meant for a different vehicle. Wheel Size Front Wheel Size Rear Bolt Pattern Front Bolt Pattern Rear Arctic Cat.
See all the atv and utv wheels we carry in the 4110 bolt pattern. OEM WHEEL SIZE BOLT PATTERN. Big Boss 400L 6x6.
Big Boss 400L 6x6. Magnum 425 2x4 4x4. Magnum 4252x4 4x4.
The Below Chart displays what ATV wheel sizes and bolt pattern would have come with your ATV from the factory Keep in mind aftermarket parts may vary slightly and still work for your application. Choose Your Brand Can-AmBombardier Honda Kawasaki Polaris Suzuki Yamaha Arctic Cat ATV wheels by model Model Year Rim Size Front Rear Bolt Pattern Front Rear 50 2 Stroke Auto 04-05 nbsp. Measuring your ATVs Bolt Pattern.
When measuring your ATVs bolt pattern you will want to check both the front and rear. Some ATV models use a different bolt pattern on front and back so youll want to double check yours before purchasing new wheels. Arctic Cat Wheel Size Bolt Pattern Guide.
ATV Wheels Rims Everyone knows how great a shiny set of new ATV wheels can look. But its about more than just form quality wheels and rims are instrumental in reducing power-robbing friction and distributing weight for better tire wear and need to be strong enough to take a licking on tough terrain. Can-Am ATV Tyre Sizes and Wheel Application Chart The right tyre sizes height width diameter of rim and wheel sizes guide with bolt pattern and wheel offset for Can-Am ATVs and UTVs.
Find your four-wheeler model below in the chart use Jump Menu for easy navigation. Key Identifying Wheel Dimensions. Wheel Bolt or Lug Pattern or bolt circle lug circle lug pattern etc is the measured diameter of an imaginary circle formed by the centers of the wheel lugs or bolt holes.
Bolt patterns can be 3 4 5 6 7 8 or 10 lug holes. A bolt circle of 5 x 45 would indicate a 5 lug bolt pattern on a circle with a diameter of 45 inches. There are four important measurements that are used to categorize and identify a wheel for fitment purposes.
